ELECYLINDER® – Applications & Solutions
EC – Feeding Device of Paper Carton Materials
A device for feeding paper carton materials to the next process.The workpieces (before formed into paper liquid packs) stacked by the ELECYLINDER® are lifted up to the predetermined position. The sensor detects the top of the stacked workpieces and stops the lifting....
EC – Deburring Device for Resin-Molded Products
A device for changing the position of a deburring heater.The heater location can be changed according to the type of the resin-molded product. When an air cylinder was used, the speed was limited to 300 mm/s in order to avoid failures of the heater due to impact at...
EC – Gate Cutting Device for Resin-Molded Parts
A device for operating the cutter of a gate cutting machine for resin-molded parts.Compared with an air cylinder, the ELECYLINDER® enables easier fine adjustments of the cutter position. The cutter's tilting movement by the Z-axis is smoother, thus providing a sharp...
EC – Panel Positioning Device
A device for adjusting the transfer position of panels which are flowing on the conveyor.The worker pushes the panel flowing on the conveyor against the stopper for positioning. Drilling is carried out in the next process. The stopper is used to change the stopping...
EC – Device for Changing Parts Posture
An air cylinder used to make the parts fall out due to sudden turning. The ELECYLINDER® provides smooth accelerations/decelerations.
EC – Transfer Device for Battery Containers
A device for transferring containers filled with battery liquid.This device transfers battery containers under the dispenser and returns them to their original positions after filling. Thanks to the operations with a preset acceleration/deceleration, a stable transfer...
EC – Lifting Device of Semi-Finished Products for inspection
A device for lifting semi-finished products during assembling to perform a visual inspection of wiring on the bottom.Lifting up is required because the semi-finished product during assembling cannot be slanted for a visual inspection on the bottom. The ELECYLINDER®...
EC – Inspection Device for Substrate Continuity
A device for inspecting continuity of substrates by using a probe.In the past, an air cylinder was used. However, safety circuit designing for emergency stops (residual voltage, inadvertent leaping out, etc.) and restoring procedures after emergency stops were very...
EC – Door Opening for High-Voltage Inspection Device
A device for opening the door of a voltage inspection device for automobile electronic parts.From the designing stage, the inspection device was presupposed to employ an ELECYLINDER®. The following effects were confirmed: 1) Opening: high speed operation. Closing:...
EC – Operation of Positioning Pins of an Automated Guided Vehicle (AGV)
A device for lifting positioning pins of an automated guided vehicle (AGV).An air cylinder needs a compressor or air piping to be built-in the AGV. However, an ELECYLINDER® needs only simple wiring to operate the lifting device for positioning pins.EC-TW4L ...
EC – Loading for Press Machine
A device for loading metal plates onto a press machine In the past, in order to set the metal plate in the press and push it back, a worker put his hand in the press. Workability has been improved by electrifying the step of pushing into the back with ELECYLINDER®....

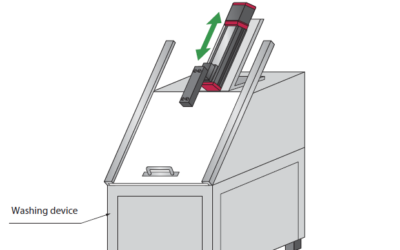

EC – Opening Device for Washing Apparatus Door
An opening Device for Washing Apparatus DoorThe air cylinder was previously used to open and close the door, but since the deceleration speed can not be controlled, the door makes hard contact when stopping at the rising and falling ends. Because of this, it was not...
