Factory airless.
Environmentally friendly.

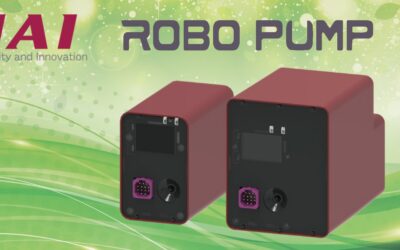

ROBO Pump®
Compact and Easy
Maximize your workspace with this ultra-compact vacuum pump. Despite its small size, it has an integrated solenoid valve and pressure sensor, perfect for efficiently handling lightweight objects.
No Piping Necessary
Forget complex setups with messy air lines or bulky compressors. Simply connect ROBO pump to the cable and power and you're ready to go. Add the optional wireless feature for remote communication with a teaching tool.
Monitor and Control with Ease
The built-in display shows real-time pressure and any alarm conditions. Intuitive four-way switches with a center push button allow for quick adjustments to threshold values and other parameters.
Power & Communication Cable length
| 1 | 1m |
| to | to |
| 10 | 10m |
(Note) When using the interface box, 9m is the maximum available.
Power · I/O Cable length
| 0 | No Cable. Terminal block connector is included when "ACR" is not selected * |
| 1 to 9 | 1m to 9m standard cable included |
| S1 to S9 | 1m to 9m 4-way connector cable included |
* When selecting RCON-EC connection specification (ACR), select "0". Power · I/O connector is not included.
(S): 4-way connector cable
(Note) Make sure that the total length along with the actuator cable is 10m or less.
Options
| Blank | NPN specification (Connected via I/F box) No option |
| ACR | RCON-EC connection specification *1 |
| PN | PNP specification (Connected via I/F box) *1 |
| WL | Wireless communication specification (Connected via I/F box) *2 |
*1 "PN" cannot be selected when "ACR" is selected. (I/O for "ACR" option is NPN only)
*2 "WL" cannot be selected when "ACR" is selected. (When using wireless communication, an interface box and cable must be purchased separately.)
Power & Communication Cable
| Cable code | Cable length |
| 1 to 3 | 1 to 3m |
| 4 to 5 | 4 to 5m |
| 6 to 10 | 6 to 10m |
(Note) Robot cable.
Power・I/O Cable
| Standard connector cable | ||
| Cable code | Cable length | User Wiring Type Flying leads CB-EC-PWBIO□□□-RB enclosed |
| 0 | No Cable | * The only accessory provided is the terminal block. |
| 1 to 3 | 1 to 3m | ✓ |
| 4 to 5 | 4 to 5m | ✓ |
| 6 to 9 | 6 to 9m | ✓ |
| 4-way connector cable | ||
| Cable code | Cable length | User Wiring Type Flying leads CB-EC-PWBIO□□□-RB enclosed |
| S1 to S3 | 1 to 3m | ✓ |
| S4 to S5 | 4 to 5m | ✓ |
| S6 to S9 | 6 to 9m | ✓ |
(Note) Robot cable.
Options
| Name | Option code |
| RCON-EC connection specification | ACR |
| PNP specification | PN |
| Wireless communication specification | WL |
Brackets (sold separately)
| Name | Model |
| Side Attachment Bracket | RP-BKT-VPM |
| Cable Support Bracket | RP-FST-VPM |
* For the external dimensions and mounting methods, refer to the instruction manuals.
| Specification | |
| Item | Contents |
| Withdrawal Method | Vent to atmosphere |
| Pump Type | Diaphragm Pump System |
| Power supply voltage | 24VDC±10% |
| Power supply current | Rated 0.8A maximum 1.3A |
| Vacuum pressure | -50kPa or less |
| Generated flow volume | 1.8L/min or more |
| Air suction fitting size | For Φ 4x2.5mm tube |
| Installation orientation | Horizontal |
| Ambient operating temperature | 0 to 40°C |
| Ambient operating humidity | 85% RH or less (no condensation) |
| Allowable Duty Cycle | 100% Duty cycle operation available * Duty (%) =Vacuum Time / (Vacuum Time + Stop Time) |
| Protection rating | IP20 |
| Mass | 320g |
| Reference for Loadable Workpiece Mass | ||
| Suction Cup Diameter (mm) | Top suction payload (kgf) (Safety Margin 4) |
Side suction payload (kgf) (Safety Margin 8) |
| 1 | 0.001 | 0.0005 |
| 3 | 0.009 | 0.0045 |
| 6 | 0.036 | 0.018 |
| 10 | 0.1 | 0.05 |
| 15 | 0.225 | 0.113 |
| 20 | 0.401 | 0.2 |
(Pressure -50kPa, Nitrile Rubber Pad)
