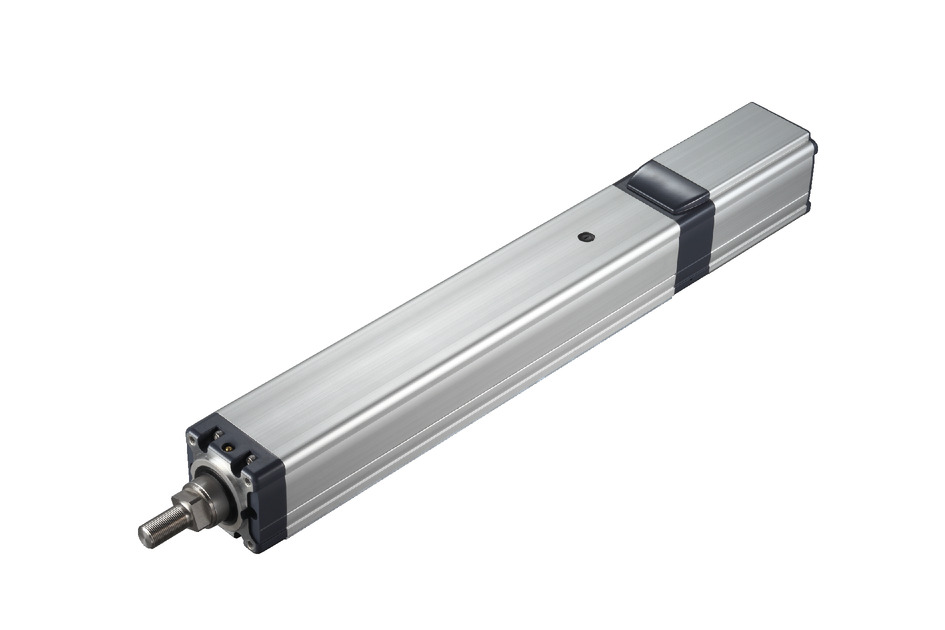

RCP5W-RA8C
*Note: Some pictures on this page are still Japanese version and the English version pictures are coming soon.
Actuator Specification
| Model | Lead (mm) |
Maximum payload capacity | Maximum pressing force (N) |
Stroke (mm) |
|
|---|---|---|---|---|---|
| Level (kg) | Vertical (kg) | ||||
| RCP5W-RA8C-WA-60P-20-①-P4-②-③ | 20 | twenty four | 4 | 500 | 50 to 700 (every 50 mm) |
| RCP5W-RA8C-WA-60P-10-①-P4-②-③ | 10 | 48 | 32 | 1000 | |
| RCP5W-RA8C-WA-60P-5-①-P4-②-③ | 5 | 80 | 56 | 2000 | |
Symbol explanation ① Stroke ② Cable length ③ Option
| Lead (mm) |
50 (mm) |
100 (mm) |
150 to 400 (mm) |
450 (mm) |
500 (mm) |
550 (mm) |
600 (mm) |
650 (mm) |
700 (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 280 | 405 ＜360＞ |
480 ＜360＞ |
440 ＜360＞ |
360 | 320 | 280 | 240 | 220 |
| 10 | 240 ＜200＞ |
220 ＜200＞ |
180 【＜175＞】 |
160 | 140 | 120 | 110 | ||
| 【210＜175＞】 | |||||||||
| 5 | 120 ＜100＞ |
110 ＜100＞ |
90 【＜75＞】 |
80 【＜75＞】 |
70 | 60 | 55 | ||
| 【100＜75＞】 | |||||||||
(Unit: mm/s)
(Note) ＜ ＞ indicates vertical use.
(Note) The values in brackets [ ] apply when used at an ambient temperature of 5°C or less.

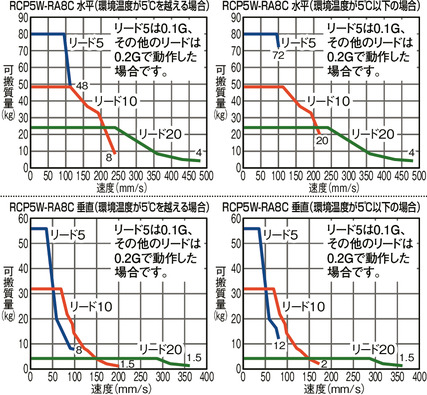

Correlation diagram between speed and payload
If the environmental temperature is below 5°C, the speed will be slower than when it is above 5°C.

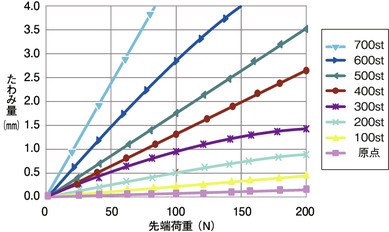

RCP5W-RA8C Rod deflection amount
The table below shows the amount of rod deflection measured when the rod is placed horizontally and a load is applied to the end of the rod (deflection due to the rod's own weight is not included).
Actuator Specifications
| item | Contents |
|---|---|
| Drive system | Ball screw φ16mm rolled C10 |
| Repeated positioning accuracy | ±0.02mm |
| Lost Motion | Less than 0.1 mm |
| rod | φ40mm Aluminum |
| Rod non-rotation accuracy (Note 1) | 0 degrees |
| Rod end allowable load/allowable torque | Please refer to the stroke-specific dimension table and page |
| Rod tip overhang distance | Under 100mm |
| Protective structure | IP65 |
| Ambient temperature and humidity | 0 to 40°C, 85% RH or less (no condensation) |
(Note 1) Indicates the angle of displacement in the rod rotation direction under no load.

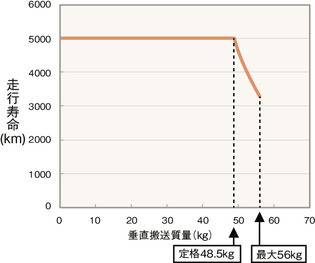

Correlation diagram between vertical transport mass and running life
When using Lead 5 in a vertical installation, the life span varies greatly depending on the payload. When using it in a horizontal installation, the payload has no effect.
Please note that the graph of payload and life span is shown below.

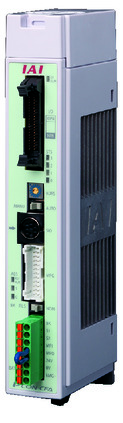

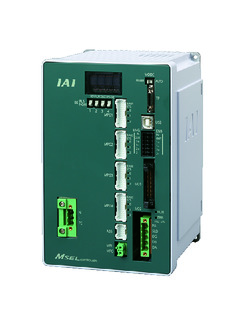

Adaptive Controller
The actuators on this page can be operated with the following controllers. Please select the type that suits your application.
| name | exterior | Maximum number of connectable axes |
Power supply voltage | Control Method | Maximum number of positioning points | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Positioner | Pulse train | program | Network ※Select | ||||||||||||||||
| DV | CC | CIE | PR | CN | ML | ML3 | EC | EP | PRT | SSN | ECM | ||||||||
 |
4 | Single phase AC 100-230V |
- | - | ● | ● | ● | - | ● | - | - | - | ● | ● | ● | - | - | 30000 | |
 |
1 | DC24V | ● ※Select |
● ※Select |
- | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | - | - | 512 (network specification is 768) |
|
 |
16 | - | - | - | ● | ● | ● | ● | - | - | - | ● | ● | ● | - | - | 128 | ||
(Note) For network abbreviations such as DV and CC, please see page
(Note) The 3rd and 4th axes of MSEL-PCF/PGF cannot be connected.
International Standards
Features
Selection considerations
 |
(1) The payload is the value when lead 5 is operated with an acceleration of 0.1G, and lead 10 and lead 20 are operated with an acceleration of 0.2G. The above value is the upper limit for acceleration and deceleration. (For the maximum payload by acceleration, refer to .) (2) The radial cylinder has a built-in guide. For the allowable load mass, refer to the graph on . (3) The cable joint connector is not waterproof, so install it in a place where it will not be exposed to water. (4) Caution is required depending on the installation position. For details, refer to page . (5) For details on pressing operation, refer to . (6) When connecting to RCON, a conversion unit or conversion cable is required. For details, refer to page |

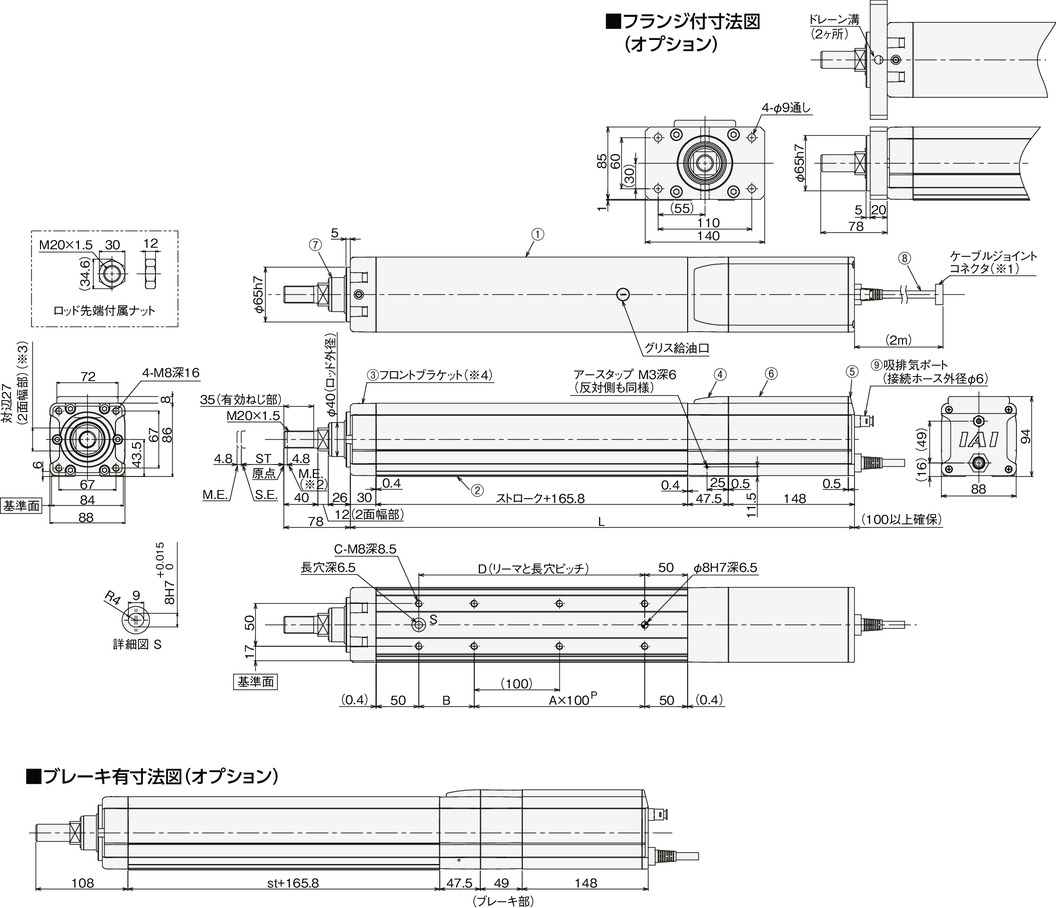

Dimensions
ST: Stroke
ME: Mechanical end
SE: Stroke end
*1 Connect the motor/encoder cable.
*2 When returning to the origin, the rod moves to the ME, so please be careful not to interfere with surrounding objects.
*3 The orientation of the width across flats varies depending on the product.
*4 When installing the main body using the front bracket and flange, make sure that no external force is applied to the main body.
Main Component Materials
| ① | Frame | Aluminum extrusion (equivalent to A6N01SS-T5) White anodized |
| ② | base | Aluminum extrusion (equivalent to A6N01SS-T5) White anodized |
| ③ | Front bracket | Aluminum die casting |
| ④ | Rear bracket | Aluminum die casting |
| ⑤ | Rear cover | Aluminum die casting |
| ⑥ | Motor cover | Aluminum extrusion (equivalent to A6063SS-T5) White anodized |
| ⑦ | rod | Aluminum drawn pipe (equivalent to A6063TD-T83) Buffed finish + hard anodized |
| ⑧ | Actuator Cable | Polyvinyl chloride (PVC) |
| ⑨ | Intake and exhaust ports | Polyphenylene sulfide (PPS) |
Dimensions and weight by stroke
| stroke | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 700 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | No brakes | 441.3 | 491.3 | 541.3 | 591.3 | 641.3 | 691.3 | 741.3 | 791.3 | 841.3 | 891.3 | 941.3 | 991.3 | 1041.3 | 1091.3 |
| With brake | 490.3 | 540.3 | 590.3 | 640.3 | 690.3 | 740.3 | 790.3 | 840.3 | 890.3 | 940.3 | 990.3 | 1040.3 | 1090.3 | 1140.3 | |
| A | 0 | 1 | 1 | 2 | 2 | 3 | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 7 | |
| B | 115 | 65 | 115 | 65 | 115 | 65 | 115 | 65 | 115 | 65 | 115 | 65 | 115 | 65 | |
| C | 4 | 6 | 6 | 8 | 8 | 10 | 10 | 12 | 12 | 14 | 14 | 16 | 16 | 18 | |
| D | 115 | 165 | 215 | 265 | 315 | 365 | 415 | 465 | 515 | 565 | 615 | 665 | 715 | 765 | |
| Static allowable load at rod tip (N) | 180 | 150.3 | 128.9 | 112.7 | 99.9 | 89.7 | 81.3 | 74.3 | 68.3 | 63.1 | 58.6 | 54.6 | 51.1 | 47.9 | |
| Rod tip dynamic allowable load (N) |
Load offset 0mm | 73.6 | 60.3 | 51.0 | 44.1 | 38.7 | 34.3 | 30.7 | 27.7 | 25.2 | 23.0 | 21.1 | 19.4 | 17.8 | 16.5 |
| Load offset 100mm | 57.0 | 48.6 | 42.5 | 37.8 | 33.8 | 30.5 | 27.6 | 25.2 | 23.1 | 21.2 | 19.5 | 18.1 | 16.7 | 15.5 | |
| Rod tip static allowable torque (N･m) | 18.1 | 15.2 | 13.0 | 11.4 | 10.2 | 9.2 | 8.4 | 7.7 | 7.1 | 6.6 | 6.1 | 5.8 | 5.4 | 5.1 | |
| Rod tip dynamic allowable torque (N･m) | 5.7 | 4.9 | 4.3 | 3.8 | 3.4 | 3.0 | 2.8 | 2.5 | 2.3 | 2.1 | 2.0 | 1.8 | 1.7 | 1.5 | |
| Mass (kg) |
No brakes | 7.6 | 8.1 | 8.5 | 8.9 | 9.4 | 9.8 | 10.2 | 10.7 | 11.1 | 11.5 | 11.9 | 12.4 | 12.8 | 13.2 |
| With brake | 8.8 | 9.2 | 9.6 | 10.1 | 10.5 | 10.9 | 11.4 | 11.8 | 12.2 | 12.6 | 13.1 | 13.5 | 13.9 | 14.4 | |
