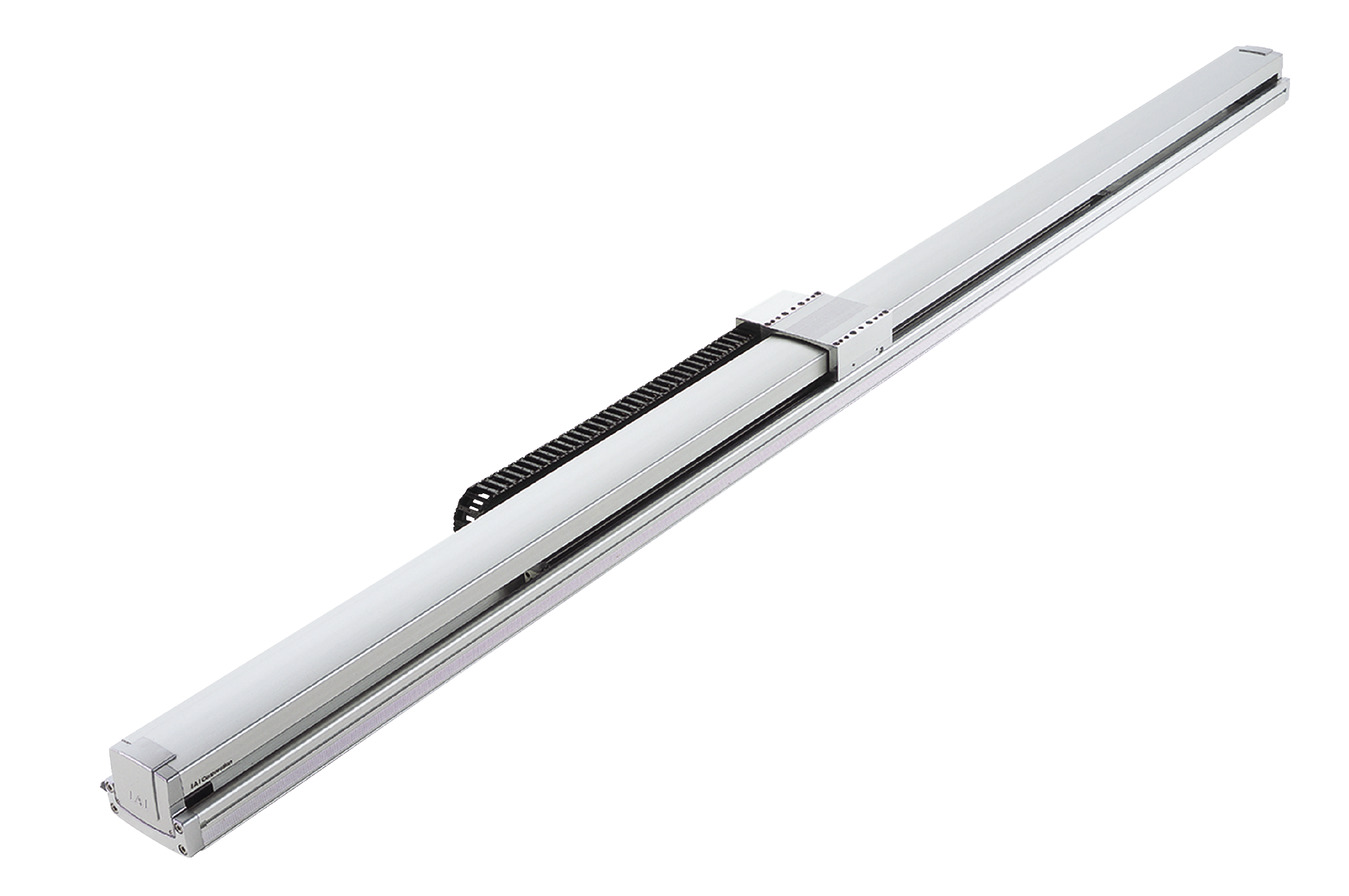

NS-LXMSA

Product Features

Installation position


*Note: Some pictures on this page are still Japanese version and the English version pictures are coming soon.


Main Specifications

item Contents
Lead Ball screw lead (mm) 40 20
Horizontal Payload capacity Maximum payload (kg) 40 80
Speed/Acceleration Maximum speed (mm/s) 2400 1300
Rated acceleration/deceleration (G) 0.3 0.3
Maximum acceleration/deceleration (G) 1 1
vertical Payload capacity Maximum payload (kg) - -
Speed/Acceleration Maximum speed (mm/s) - -
Rated acceleration/deceleration (G) - -
Maximum acceleration/deceleration (G) - -
Thrust Rated thrust (N) 170.0 340.1
brake Brake specifications - -
Brake holding force (kgf) - -
stroke Minimum stroke (mm) 500 500
Maximum stroke (mm) 2200 2200
Stroke pitch (mm) 50 50

Item Content
Drive method Ball screw φ20mm, rolled C5 equivalent
Repeatability ±0.01mm
Lost motion Less than 0.02mm
Base Material: Aluminum with white anodized coating
Linear Guide Linear infinite circulation type
Static allowable moment Ma：374N･m
Mb：533N･m
Mc：884N･m
Dynamic allowable moment
（Note 4）		 Ma：123N･m
Mb：176N･m
Mc：291N･m
Operating ambient temperature and humidity 0 to 40°C, below 85% RH (without condensation).
Protection rating. －
Vibration and shock resistance. 4.9m/s2
International Standards for Compliance. CE Marking, RoHS Directive
Motor Type AC Servo Motor
Encoder Type Incremental / Absolute
Encoder pulse count 16384 pulse/rev
Delivery time The delivery time is listed on the website under [Delivery Inquiry].

(Note 4) This is based on a standard rated lifespan of 10,000 km. The actual operational lifespan may vary depending on the operating conditions and installation status.

　1-244Please check the operational lifespan on the page.

Slider type moment direction

Payload table by speed/acceleration

The unit of payload is kg. Blank spaces mean the item cannot be operated.

posture Horizontal vertical
Lead
(mm)		 Maximum speed
(mm/s)		 Acceleration (G)
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2
40 2400 40 40 30 twenty five 20 17 15 13 10 For horizontal use only.
20 1300 80 80 60 48 40 34 30 27 twenty four

Stroke and maximum speed

(Unit: mm/s)

stroke
Lead		 500 to 2200
(every 50 mm)
40 2400
20 1300

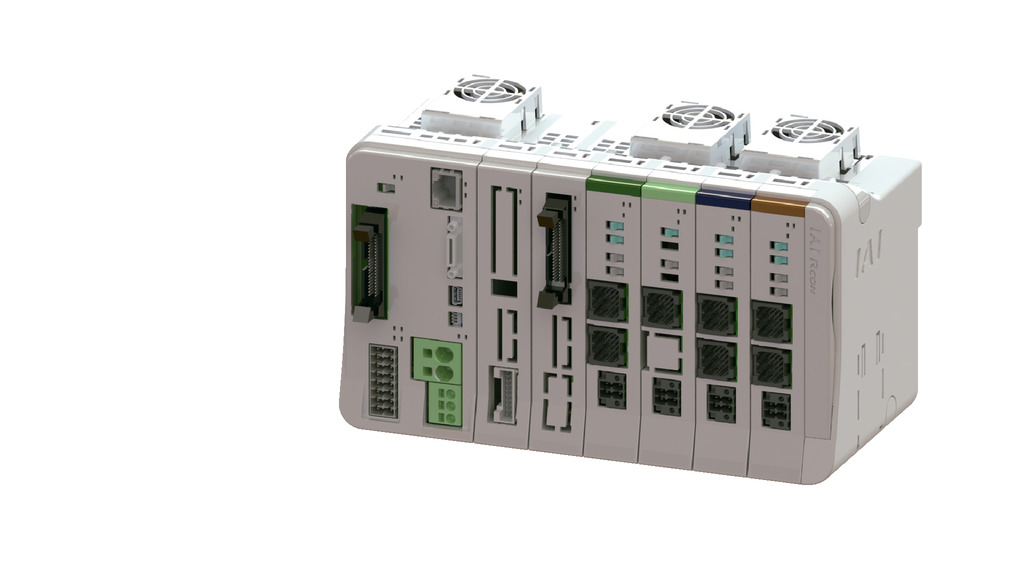

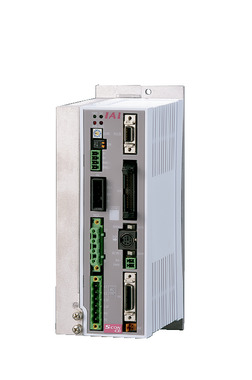

Adaptive Controller

The actuators on this page can be operated with the following controllers. Please select the type that suits your application.

name exterior Maximum
number of connectable axes		 Power supply voltage Control Method Maximum number of positioning points
Positioner Pulse train program Network ※Select
DV CC CIE PR CN ML ML3 EC EP PRT SSN ECM
RCON 16
(ML3, SSN, ECM are 8)		 DC24V
Single-phase AC200V
Three-phase AC200V		 - - - ● ● ● ● - - ● ● ● ● ● ● 128
(ML3, SSN, ECM no position data)
RSEL 8 - - ● ● ● ● ● - - - ● ● ● - - 36000
SCON-CB/CGB 1 Single phase AC200V ● ● - ● ● ● ● ● ● ● ● ● ● - ● 512
(network specification is 768)
SSEL-CS 2 Single phase AC
100V/200V		 ● - ● ● ● - ● - - - - ● - - - 20000
XSEL-P/Q 6 Single-phase AC200V
Three-phase AC200V		 - - ● ● ● - ● - - - - ● - - - 20000
XSEL-RA/SA 8 - - ● ● ● - ● - - - ● ● - - - 55000
(varies by type)

(Note) For network abbreviations such as DV and CC, please see page 8-17 .

(Note) Absolute actuators cannot be connected to RCON-SC.

International Standards

Selection considerations

(1) The "main spec" payload capacity shows the maximum value. For details, refer to the "Table of payload capacity by speed and acceleration".
(2) The "main spec" maximum payload capacity is the value when operated at the maximum speed.
(3) Caution is required depending on the mounting position. For details, refer to page 1-261
. (4) The guideline for the overhang load length is 750 mm or less in the Ma, Mb, and Mc directions.

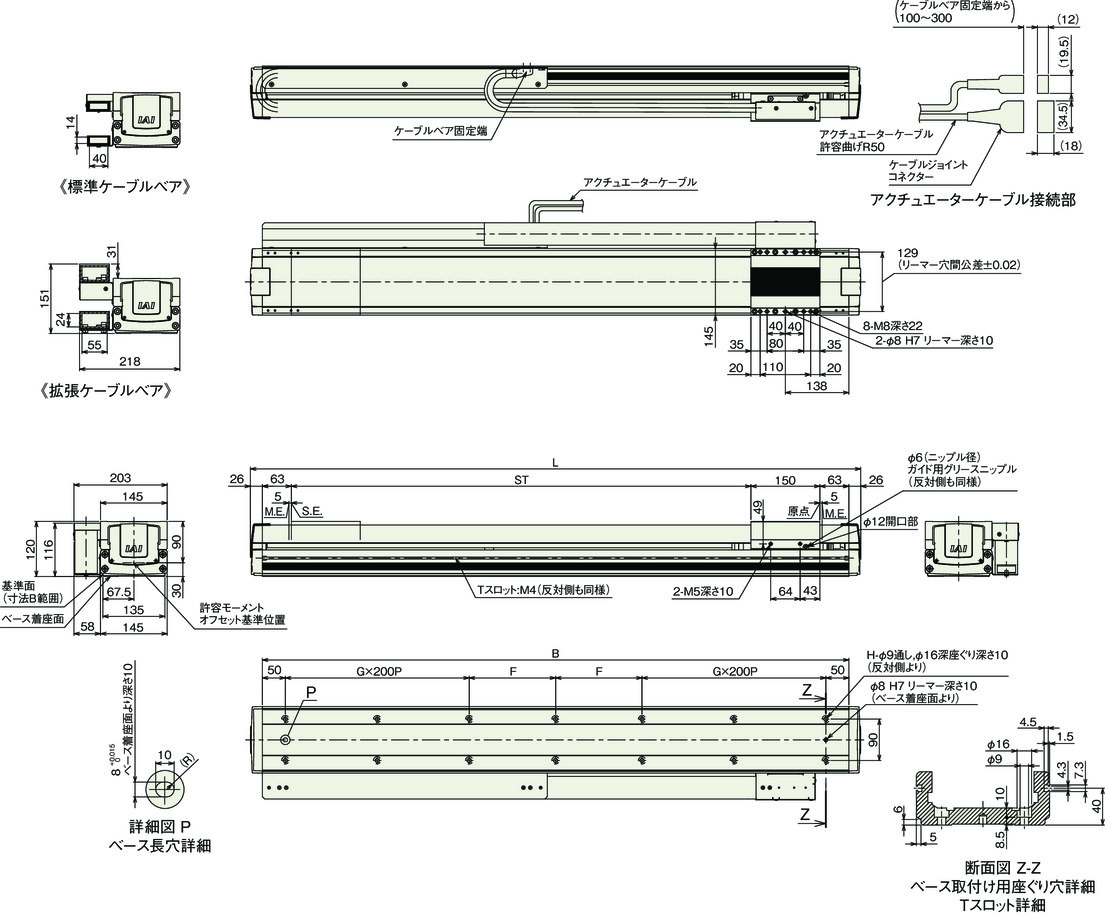

Dimensions

ST: Stroke

ME: Mechanical end

(Note) The motor cable and encoder cable are connected to the cable joint connector.

　For cable details, see page 1-114 .

(Note) When performing origin return, the slider will move to the ME, so please be careful not to interfere with the surroundings.

(Note) The gap between the outer diameter of the cables/hoses stored in the cable carrier and the inner wall, as well as the gap between the cables/hoses themselves, should be 2 mm or more.

(Note) The cables and hoses stored in the cable carrier should have an outer diameter of φ16.8 or less, be arranged horizontally, and not cross each other.

(Note) Please note that if the number of cables/hoses stored in the cable carrier exceeds the above specifications, undue stress will be applied to the cables, significantly shortening their lifespan.

Stroke dimensions

stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
L 828 878 928 978 1028 1078 1128 1178 1228 1278 1328 1378 1428 1478 1528 1578 1628 1678 1728 1778 1828 1878 1928 1978 2028 2078 2128 2178 2228 2278 2328 2378 2428 2478 2528
B 776 826 876 926 976 1026 1076 1126 1176 1226 1276 1326 1376 1426 1476 1526 1576 1626 1676 1726 1776 1826 1876 1926 1976 2026 2076 2126 2176 2226 2276 2326 2376 2426 2476
F 138 163 188 213 238 263 288 113 138 163 188 213 238 263 288 313 138 163 188 213 238 263 288 313 138 163 188 213 238 263 288 313 138 163 188
G 1 1 1 1 1 1 1 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 5 5 5
H 10 10 10 10 10 10 10 14 14 14 14 14 14 14 14 14 18 18 18 18 18 18 18 18 twenty two twenty two twenty two twenty two twenty two twenty two twenty two twenty two 26 26 26

Mass by stroke

stroke 500 550 600 650 700 750 800 850 900 950 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900 1950 2000 2050 2100 2150 2200
Mass (kg) 18.6 19.3 20.1 20.8 21.6 22.3 23.1 23.8 24.5 25.3 26.0 26.8 27.5 28.3 29.0 29.8 30.5 31.3 32.0 32.8 33.5 34.2 35.0 35.7 36.5 37.2 38.0 38.7 39.5 40.2 41.0 41.7 42.5 43.2 43.9
