IAI | | ICSA2_ICSPA2-BQ□M

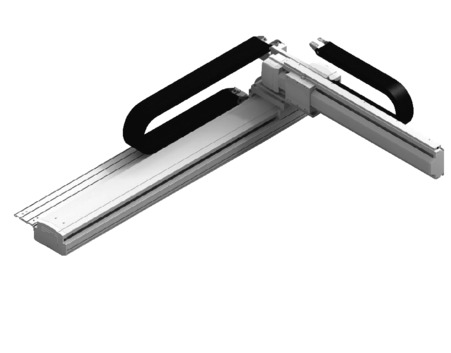

ICSA2-BQ□M
ICSPA2-BQ□M

Maximum speed by stroke

(Unit: mm/s)


300-700 900-1500 1600 1700 1800 1900
X-Axis - 1250 1200 1075 965 870
Y-Axis 1200 - - - - -

(Unit: mm/s)


2000 2100 2200 2300 2400 2500
X-Axis 790 720 660 605 555 515
Y-Axis - - - - - -

Payload by acceleration

The units in the table are kg.


Y-axis stroke
300 400 500 600 700
acceleration 0.3 62.3 49.8 40.7 33.7 28.1
0.4 - - - - -
0.5 - - - - -
0.6 - - - - -
0.7 - - - - -
0.8 - - - - -
0.9 - - - - -
1.0 - - - - -

Adaptive Controller

Please refer to the page for each controller. ( Page 8-8 ) Note that controllers are sold separately.

International Standards

Selection considerations

(1) The stroke column in the model number is written in cm (centimeters).
(2) The cable length is the length from the X-axis connector box (or from the X-axis actuator cable in the case of a cable bearer specification) to the controller. The standard length is 3m or 5m, but other lengths are also available in meters. Up to a maximum of 20m is possible.
(3) Please note that the maximum speed decreases as the stroke becomes longer.
(4) The rated acceleration is 0.3G. (The upper limit for acceleration is 0.3G)
(5) The values ​​in brackets [ ] are for high-precision model specifications.

Dimensions

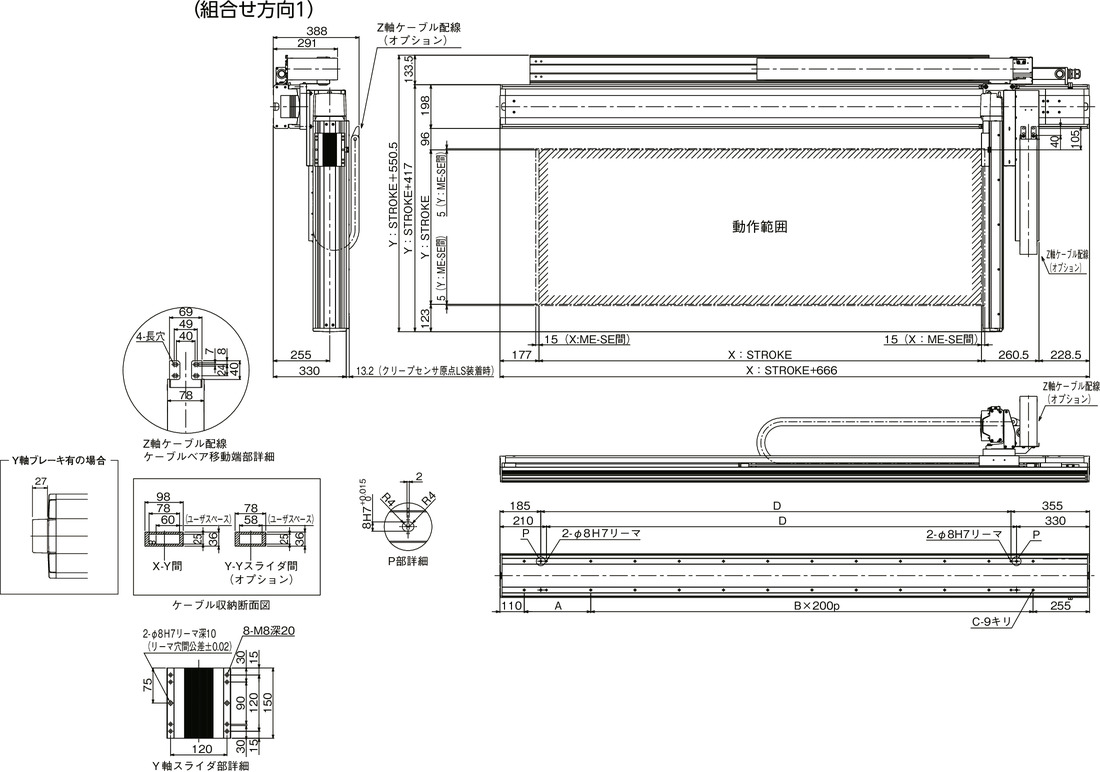

ICSA2 [ICSPA2] -BQ M-CT (Cableveyor specification) Combination direction 1

ME: Mechanical End

SE: Stroke end

(Note) The combination position on the drawing is the origin position. If you want to change the origin position, please specify the option NM. Please note that if you want to change the origin position after delivery, you will need to return the product for adjustment.

(Note) The moving end of the cable bear for the Z-axis cable wiring should be fixed to a plate or the like that you have attached to the Y-axis slider.

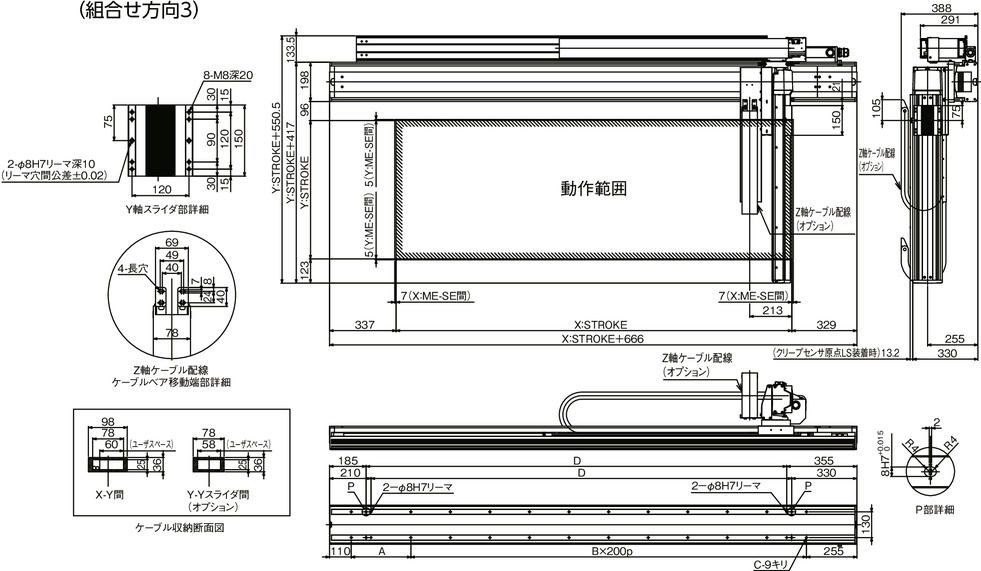

ICSA2 [ICSPA2] -BQ M-CT (Cableveyor specification) Combination direction 3

(Note) The combination position on the drawing is the origin position. If you want to change the origin position, please specify the option NM. Please note that if you want to change the origin position after delivery, you will need to return the product for adjustment.

(Note) The moving end of the cable bear for the Z-axis cable wiring should be fixed to a plate or the like that you have attached to the Y-axis slider.

X-Stroke 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 2400 2500
A 201 301 201 301 201 301 201 301 201 301 201 301 201 301 201 301 201
B 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13
C 14 14 16 16 18 18 20 20 twenty two twenty two twenty four twenty four 26 26 28 28 30
D 1026 1126 1226 1326 1426 1526 1626 1726 1826 1926 2026 2126 2226 2326 2426 2526 2626

Common Specifications

Drive system Ball screw rolled C10 [equivalent to rolled C5]
Repeated positioning accuracy ±0.02mm【±0.01mm】
Lost Motion 0.05mm or less [0.02mm or less]
guide Base integrated type
base Material: Aluminum, white anodized
X-axis motor output/lead 750W/25mm
Y-axis motor output/lead 400W/20mm

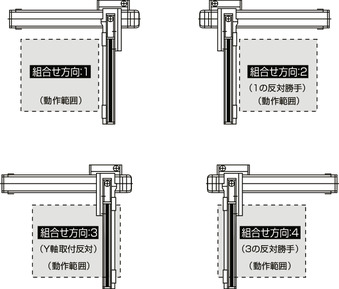

XY combination direction

Model details

XY combination
direction (Note 1)
Model
1 ICSA2 [ICSPA2]-BQ1M-①-②③-④⑤-T2-⑥-⑦-⑧
2 ICSA2 [ICSPA2]-BQ2M-①-②③-④⑤-T2-⑥-⑦-⑧
3 ICSA2 [ICSPA2]-BQ3M-①-②③-④⑤-T2-⑥-⑦-⑧
4 ICSA2 [ICSPA2]-BQ4M-①-②③-④⑤-T2-⑥-⑦-⑧

(Note 1) For the XY combination direction, see the diagram below. For the details of ① to ⑧ in the above model numbers, see the table below.

Model code explanation

number Contents Notation
Encoder Type A: Absolute
I: Incremental
X-axis stroke 90: 900mm
  ~
250: 2500mm
X-Axis Options See option table
Y-axis stroke 30: 300mm
  ~
70: 700mm
Y-Axis Options See option table
Cable length 3L: 3m
5L: 5m
□L: □m
Y-axis cable wiring (Note 2) CTL: Cable bear size L
Z-axis cable wiring
(optional) (Notes 2, 3)
CTM: Cableveyor M size

(Note 2) For cable carrier dimensions, refer to 5-574 .

(Note 3) Fill in the Z-axis cable wiring field in the model number only if necessary.

Configuration axis

Axis Name Model Reference page
X-Axis ISA [ISPA]-WXMX-①-750-25-②-T2-⑨-③ 3-467
Y-Axis ISA [ISPA]-LYM-①-400-20-④-T2-⑤ -

(Note) For ① to ⑤ in the above model numbers, please refer to the symbols in the model numbers above. Note that the stroke is expressed in mm (millimeters).

(Note) In the above model numbers, ⑨ indicates the cable exit direction. For the cable exit direction, refer to 5-579 .
