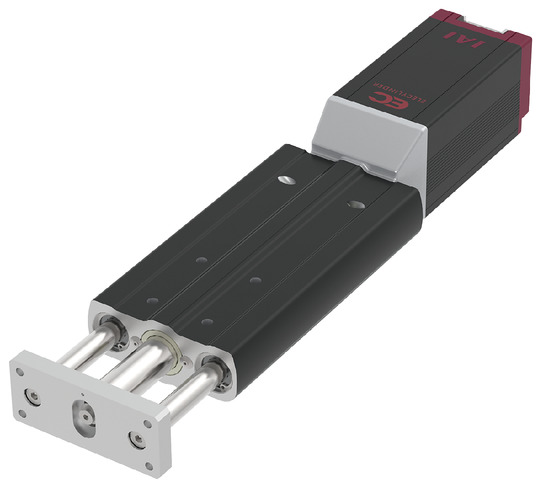

EC-SRGC9

Product Features

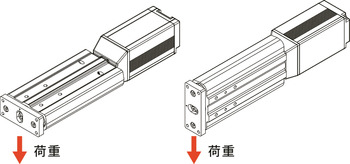

Installation position


*Note: Some pictures on this page are still Japanese version and the English version pictures are coming soon.

Main Specifications

item Contents
Lead Ball screw lead (mm) 6 4
Horizontal Payload capacity Maximum payload (kg) (power saving enabled) 13 20
Speed/Acceleration Maximum speed (mm/s) 360 250
Minimum speed (mm/s) 8 5
Rated acceleration/deceleration (G) 0.3 0.3
Maximum acceleration/deceleration (G) 0.5 0.3
vertical Payload capacity Maximum payload (kg) (power saving enabled) 2 3
Speed/Acceleration Maximum speed (mm/s) 360 250
Minimum speed (mm/s) 8 5
Rated acceleration/deceleration (G) 0.3 0.3
Maximum acceleration/deceleration (G) 0.3 0.3
Pressing Maximum thrust when pressing (N) 160 240
Maximum pressing speed (mm/s) 20 20
brake Brake specifications Non-excitation electromagnetic brake
Brake holding force (kgf) 2 3
stroke Minimum stroke (mm) 50 50
Maximum stroke (mm) 200 200
Stroke pitch (mm) 50 50

item Contents
Drive system Ball screw φ6mm rolled C10
Repeated positioning accuracy ±0.02mm
Lost Motion - (Cannot be indicated due to two-point positioning function.)
rod φ20mm Material: Aluminum, hard anodized
Guide shaft SUJ2
Front bracket Material: Aluminum, white anodized
Rod non-rotation accuracy ±0.01 degrees
Ambient temperature and humidity 0 to 40°C, 85% RH or less (no condensation)
Protection rating IP20
Vibration and shock resistance 4.9m/ s2
Overseas compatible standards CE mark, RoHS directive
Motor Type Pulse motor (□42) (power capacity: max. 2.2A)
Encoder Type Incremental/Battery-less Absolute
Encoder Pulse Number 800 pulses/rev
deadline Listed on the website [Delivery Date Inquiry]

Payload table by speed/acceleration

The payload is in kg.

posture Horizontal vertical
Speed ​​(mm/s)
Acceleration (G)
0.3 0.5 0.3
0 13 8 2
120 13 8 2
210 10 6 2
255 10 6 2
315 9 4 1.5
360 8 2 1

posture Horizontal vertical
Speed ​​(mm/s)
Acceleration (G)
0.3 0.3
0 20 3
80 20 3
140 18 3
170 15 3
210 15 2
240 8 1
250 5 1

Stroke and maximum speed

(Unit: mm/s)

Lead
(mm)
50 to 150
(in 50mm increments)
200
(mm)
6 360 310
4 250 200

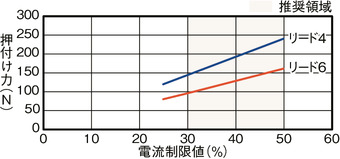

Correlation diagram between pressing force and current limit value

Adaptive Controller

(Note) The EC series has a built-in controller. For details on the built-in controller, see page 2-769 of the general catalog 2024 .

International Standards

Selection considerations

(1) When the stroke is long, the maximum speed decreases due to the dangerous rotation speed of the ball screw. Check the maximum speed of the desired stroke in "Stroke and Maximum Speed".
(2) The maximum load capacity is shown in "Main Specifications".
(3) The horizontal load capacity is the value when a guide is used to prevent radial and moment loads from being applied to the rod. If no guide is installed, refer to "Front bracket tip load and running life".
(4) When performing pressing operation, refer to "Correlation diagram of pressing force and current limit value". The pressing force is a guideline value. Please refer to page 1-315 of the general catalog 2024
for precautions. (5) Duty ratio needs to be limited depending on the ambient temperature. For details, please refer to page 1-457 of the online general catalog 2024.
(6) Cannot be used as a stopper. Please consider the stopper cylinder (EC-STC9).

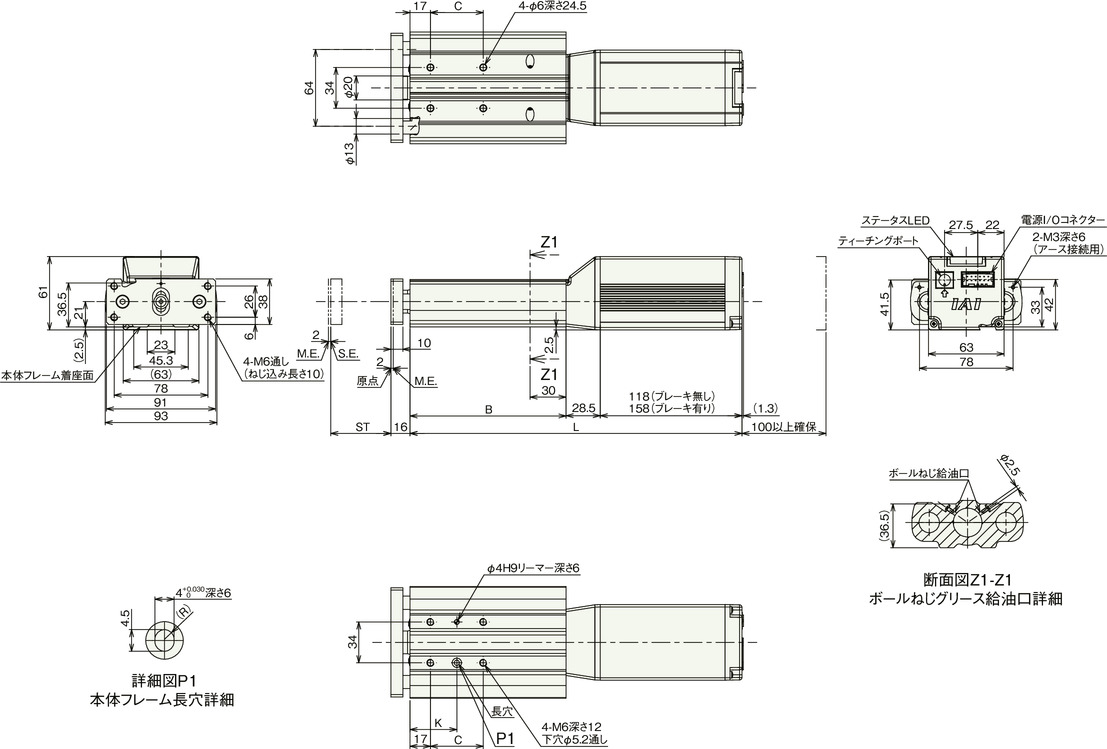

Dimensions

ST: Stroke

ME: Mechanical end

SE: Stroke end

(Note) When performing a return to origin, the rod moves to the ME, so be careful not to let it interfere with surrounding objects.

(Note) Please note that the motor unit protrudes beyond the bottom of the main unit.

Stroke dimensions

stroke 50 100 150 200
L No brakes 276.5 326.5 376.5 426.5
With brake 316.5 366.5 416.5 466.5
B 130 180 230 280
C 44 44 120 120
K 39 39 77 77

Mass by stroke

stroke 50 100 150 200
Mass
(kg)
No brakes 2.2 2.7 3.1 3.5
With brake 2.5 2.9 3.3 3.8

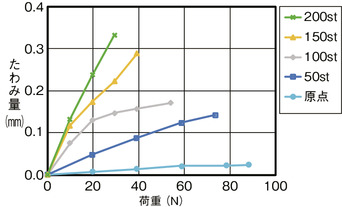

Front bracket tip deflection

Guide Horizontal

Guide portrait orientation

(Note) The amount of deflection at the tip of the front bracket is a guideline.

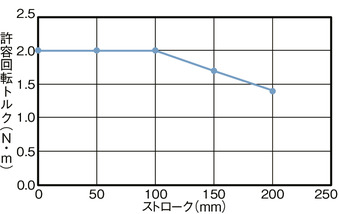

Front bracket allowable rotation torque

(Note) Use the rotational torque within the allowable range shown in the graph.

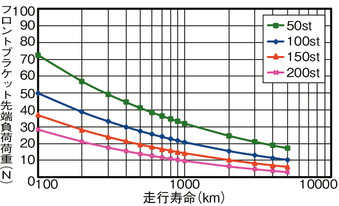

Front bracket tip load and running life

Shares
Share This
