IAI | | EC-RR8

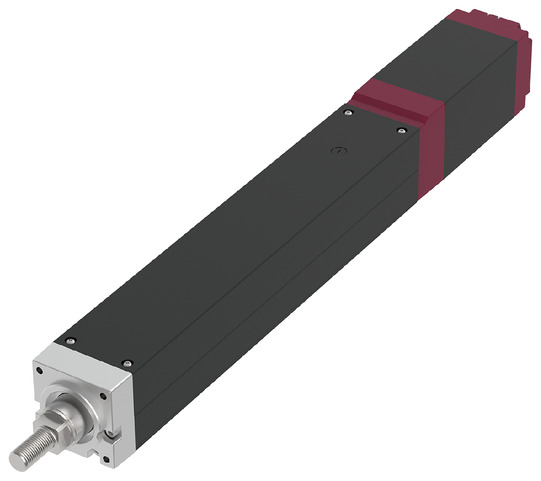

EC-RR8

Product Features

Installation position

Parametric CAD Drawings

*Note: Some pictures on this page are still Japanese version and the English version pictures are coming soon.

Main Specifications

Specification 1

item			Contents
Lead		Ball screw lead (mm)	10	5
Horizontal	Payload capacity	Maximum payload (kg)	60	100
	Speed/Acceleration	Maximum speed (mm/s)	300	150
		Minimum speed (mm/s)	13	7
		Rated acceleration/deceleration (G)	0.2	0.1
		Maximum acceleration/deceleration (G)	0.2	0.1
vertical	Payload capacity	Maximum payload (kg)	35	55
	Speed/Acceleration	Maximum speed (mm/s)	240	150
		Minimum speed (mm/s)	13	7
		Rated acceleration/deceleration (G)	0.2	0.1
		Maximum acceleration/deceleration (G)	0.2	0.1
Pressing		Maximum thrust when pressing (N)	1000	2000
Pressing		Maximum pressing speed (mm/s)	10	10
brake		Brake Specifications	Non-excitation electromagnetic brake
brake		Brake holding force (kgf)	35	55
stroke		Minimum stroke (mm)	50	50
		Maximum stroke (mm)	700	700
		Stroke pitch (mm)	50	50

Specification 2

item	Contents
Drive system	Ball screw φ16mm rolled C10
Repeated positioning accuracy	±0.02mm
Lost Motion	- (Cannot be indicated due to two-point positioning function.)
Linear guide	Direct-acting infinite circulation type
rod	φ40mm Material: Aluminum, hard anodized
Rod non-rotation accuracy (Note 6)	0 degrees
Ambient temperature and humidity	0 to 40°C, 85% RH or less (no condensation)
Protection Rating	IP20
Vibration / Shock Resistance	4.9m/s²
Overseas Compliance Standards	CE Mark/RoHS Directive
Motor Type	Pulse Motor (□60) (Power Capacity: Max 6A)
Encoder Type	Incremental/Battery-less Absolute
Encoder Pulse Count	800 pulse/rev
Deadline	Listed on the website under [Delivery Inquiry]

(Note 6) This is the displacement angle of the rod's rotation direction under no load.

Payload table by speed/acceleration

The payload is in kg.

Lead 10

posture	Horizontal
speed	Acceleration (G)
(mm/s)	0.2
0	60
150	60
180	45
240	40
260	30
300	10

vertical

Posture	Vertical
Speed	Acceleration （G）
（mm/s）	0.2
0	35
88	35
100	30
110	28
120	23
130	18
140	15
150	11
160	10
170	8
180	7
190	5
200	4
220	3
240	2

Lead 5

posture	Horizontal
Speed	Acceleration（G）
（mm/s）	0.1
0	100
45	100
120	100
130	90
140	75
150	60

vertical

posture	vertical
Speed	Acceleration（G）
（mm/s）	0.1
0	55
35	55
60	50
70	35
90	20
100	15
120	10
150	2

Please use at speeds below.

・Lead 10: 260mm/s or less

・Lead 5: 140mm/s or less

Stroke and maximum speed

(Unit: mm/s)

Lead (mm)	50 to 350 (in 50mm increments)	400 (mm)	450 (mm)	500 (mm)	550 (mm)	600 (mm)	650 (mm)	700 (mm)
10	300＜240＞	260＜240＞	220	180	160	120	120	110
5	150	130	110	90	80	70	40	40

(Note) Values in < > are for vertical use.

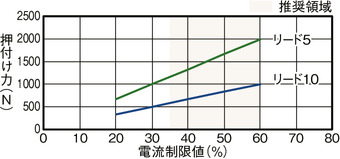

Correlation diagram between pressing force and current limit value

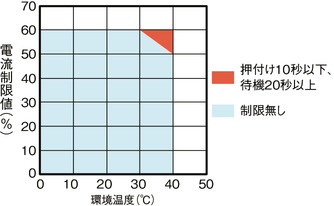

Precautions when performing pressing operation

During high thrust pressing operations in high temperature environments,

Please use within the limits shown in the graph.

Adaptive Controller

(Note) The EC series has a built-in controller. For details on the built-in controller, see page 2-769 .

International Standards

Selection considerations

(1) If the stroke is long, the maximum speed will decrease due to the dangerous rotation speed of the ball screw. Check the maximum speed of the desired stroke in "Stroke and Maximum Speed".
(2) The maximum load capacity in "Main Specifications" is shown. For details, refer
　to "Table of Load Capacity by Speed and Acceleration".
(3) The radial cylinder has a built-in guide.
　For details about the radial load acting on the rod, refer to page 2-91
. (4) The horizontal load capacity is when used in conjunction with an external guide.
(5) When performing a pressing operation, refer to "Correlation diagram between pressing force and current limit value". The pressing force is a guideline value.
(6) Caution is required depending on the installation posture. For details, refer to page 1-307
. (7) When connecting the RCON-EC connection specification (ACR) to the EC connection unit (RCON-EC-4), there is a limit to the number of units that can be connected. For details, refer to page 2-798 .

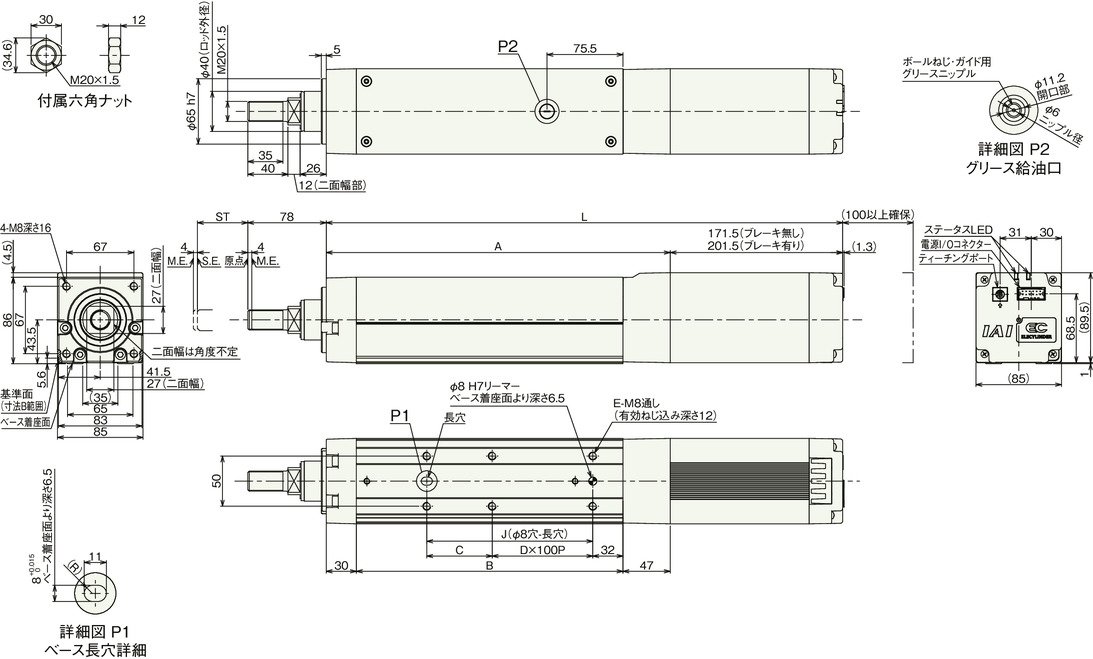

Dimensions

ST: Stroke

ME: Mechanical end

SE: Stroke end

(Note) When performing a return to origin, the rod moves to the ME, so be careful not to let it interfere with the surroundings.

(Note) Pay attention to the length of the mounting bolts. When using mounting screws on the back of the base, if the bolts are long, they may interfere with the internal parts, causing abnormal sliding or damage to the parts.

(Note) The direction of the width across flats cannot be changed.

Stroke dimensions

stroke		50	100	150	200	250	300	350	400	450	500	550	600	650	700
L	No brakes	463.5	513.5	563.5	613.5	663.5	713.5	763.5	813.5	863.5	913.5	963.5	1013.5	1063.5	1113.5
L	With brake	493.5	543.5	593.5	643.5	693.5	743.5	793.5	843.5	893.5	943.5	993.5	1043.5	1093.5	1143.5
A		292	342	392	442	492	542	592	642	692	742	792	842	892	942
B		215	265	315	365	415	465	515	565	615	665	715	765	815	865
C		115	65	115	65	115	65	115	65	115	65	115	65	115	65
D		0	1	1	2	2	3	3	4	4	5	5	6	6	7
E		4	6	6	8	8	10	10	12	12	14	14	16	16	18
J		115	165	215	265	315	365	415	465	515	565	615	665	715	765

Mass by stroke

stroke		50	100	150	200	250	300	350	400	450	500	550	600	650	700
Mass (kg)	No brakes	6.7	7.2	7.6	8.1	8.6	9.1	9.6	10.1	10.5	11.0	11.5	12.0	12.5	13.0
Mass (kg)	With brake	7.3	7.8	8.2	8.7	9.2	9.7	10.2	10.7	11.1	11.6	12.1	12.6	13.1	13.6

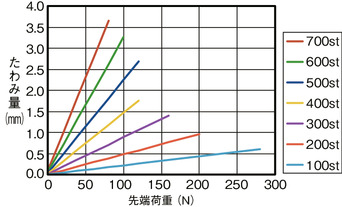

Rod deflection amount (reference value)
