The lineup of splash-proof sliders has been extended.
You can now choose a splash-proof actuator of desired size to match your specific application.
Series Features
- The new slider structure keeps water out of the internal parts. When air purge is performed, the robot conforms to IP65. (Note 1) The high-speed robot achieves a maximum speed of 1,000 mm/sec. (Note 2)
- The maximum load capacity is 70 kg, so heavy loads can be transferred effortlessly. (Note 3)
- The high-precision specification (ISPWA) with a C5-equivalent precision rolled screw boasts a positioning repeatability of +/-0.01 mm. The standard specification (ISWA) also ensures high accuracy equivalent to +/-0.02 mm.
- Select from the three sizes of S (94 mm wide), M (125 mm wide) and L (155 mm wide).
- * (Note 1) The protection class is IP54 without air purge.
- * (Note 2) M type, 200 W/20-mm lead.
- * (Note 3) M type, 100 W/5-mm lead or 200 W/10-mm lead. L type, 200W/10-mm lead or 400W/20-mm lead.

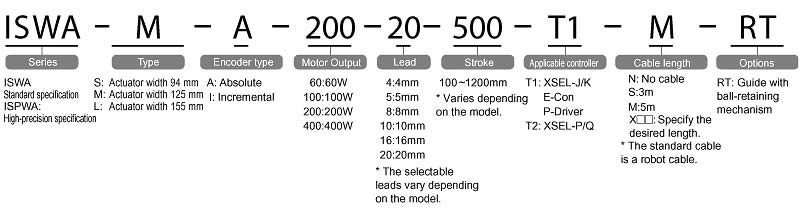

Model
Click on image to enlarge
Usage Example
Notes On Use
|
The ISWA/ISPWA must always be used in a horizontal application in the specified orientation. Be sure to observe this requirement, since water will enter the housing if these robots are positioned on their side or used in a vertical application.
The protection class of each splash-proof model indicates protection against entry of water. Please contact IAI if you require protection against oil and coolant.
Be sure to implement purge air if the robot is used in a humid place (humidity of 85% or more). The purge air must be clean, dry air supplied from an air drier.
|
|
|
|
